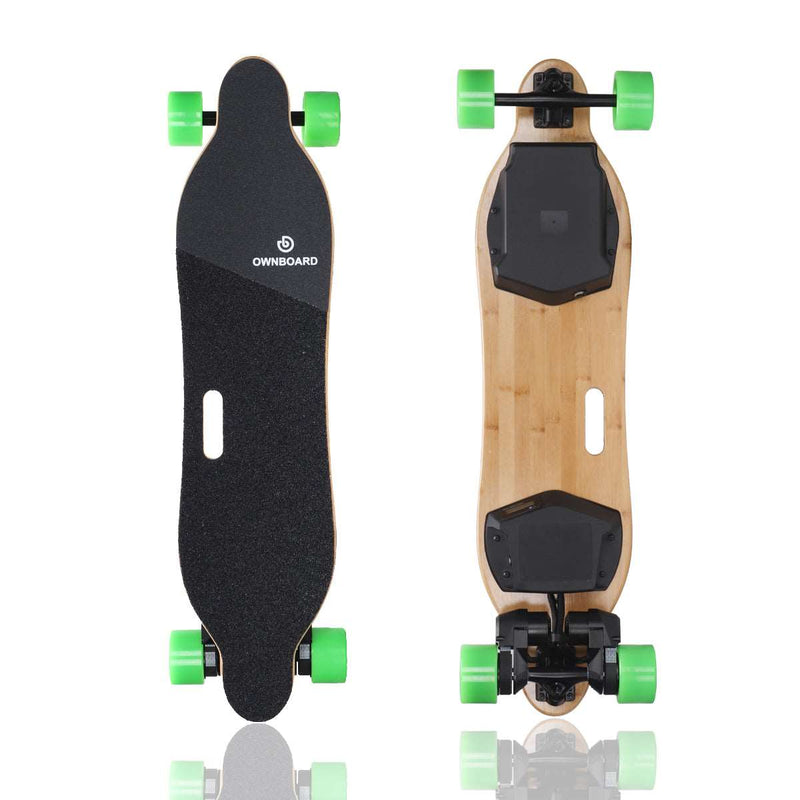

Ownboard M1 (30") Electric Skateboard | Dual Belt Motor

2019 latest Ownboard Electric Skateboard. Very powerful and comfortable. Good quality and high performance.

Battery Type
Grip Tape

PRODUCT FEATURE

ESC:
The M1 ESC uses a customized Hobbywing ESC with sensor. As other Ownboard models it still has a smooth acceleration & braking but with a faster startup speed and a more powerful climbing ability. The high discharge current of 40A will keep you and your eBoard always strong and powerful, even when you are riding on mountainous roads.
Battery:
To ensure a sufficient range we choosed an appropriate battery (Samsung 20R) with a discharge current of 44A (22A*2=44A). This new product is suitable for experienced riders and more uphill roads.
Regenerative Braking:
The battery will be recharged when you brake, which saves up    more energy for a longer ride.
2.4G Wireless Remote:
With 3 speed modes, ergonomic design, excellent soft touch material, no more connection losses,smoother acceleration & braking. An integrated LED display shows settings & battery level. We also included a vibration reminder for power & connection.
Ceramic Bearings:
The dust proof and more    resistant electric skateboard bearings for professional speeding and extended life cycle.

PRODUCT SPECIFICATION

Max Speed:
Beginner Mode: 12.5mph (20 km/h)
Middle Mode: 18.75mph (30 km/h)
Proficient Mode: 26mph (42 km/h)
Range on full charging:  2 opitons
SAMSUNG 20R 4.0Ah: 6.5-7.5 miles(10.5~12 km)
SAMSUNG 40T 8.0Ah: 13-15 miles(22~25 km)

Max Load:
120 kg (265lbs)
Up Hill:
30%
Weight:
7.2 kg (15.8lbs)
Deck:
8-Layers Maple, 30*9.45 inches, with a kicktail, Stable designed
Motor:
5045 Dual Belt Motor,270Kv 650W*2
Wheels:
90*62mm 78A Black (offset) highly elastic PU-Wheels
Pulley:
Exchangeable pulleys (Flywheel and Kegel) with automatic belt tension adjustment function
Battery: 2 opitions
Safe & Powerful Li-ion Battery by Samsung 20R (18650 2P10S)
Safe & Powerful Li-ion Battery by Samsung 40T (21700 2P10S)
Charger:
Input: 100~240V, 50/60Hz
Output: 42V, 2A for 4.0 Battery, 42V,3A for 8.0 Battery
Charging time: 2-3 hours

WHAT IS IN THE BOX?

1 x completely assembled eBoard
1 x remote with USB charging cable
1 x extra foam for you to do deck swap
1 x certificated charger
1 x DC port charger adapter (US, AU, or EU plug up to your location)
1 x T-tool
1 x rear LED light
1 x user manual
1 x dash-proof rubber
1 x extra belt
1 x extra 2pcs*Kegel Pulley

 If you have any questions, just send email to us: ownboard@hotmail.com

Customer Reviews

Based on 4 reviews
75%
(3)
25%
(1)
0%
(0)
0%
(0)
0%
(0)
T
T.G.
Brilliant board and a superb company

I absolutely love this board. It is so well made, such a great ride and it looks amazing as well. Ownboard are a great company to deal with, they are always fast to reply to emails and super friendly :) Thanks!

j
j.
Funny board

The more you ride, the more fun it is.
It took 28 days from the order date to the date of receipt.

I was riding skateboard for the first time.
Durability should be watched later, but for now satisfactory.

D
D.Y.
Great board, only thing is I was it was reversed deck position..

Overall it's a great deck. I'm the very few that rides eboards reversed, I prefer being pulled than pushed. It gives a snowboard fell or maybe some what a surfing feel too. So I ride reversed and the tail is on the front. If only this had a double tail or I can get a deck where I can switch the battery position with the motor. I ride with motor in the front. I looked this up n it seems I can many people who do this. I like it this way, I prefer it.

Riding eboards reversed !This is a great innovation , i will have a try latter.Thanks for your share and hope OWNBOARD brings you more and more fun .
B
B.L.
Samsung 40T + 90 x 62MM Wheels Exceed Expectations

The board performs exactly to the specifications listed on the website. Instructions are easy to read, and board required very little set up time (came 99% charged, and required 5mins of charging before first time use). No voltage sag experienced yet, with Hobbywing's ESC providing a smooth torque curve that's easy to manage. Very quick acceleration (on the max speed setting, it can keep up with road traffic).

Range and speed are excellent (I'm 173cm/5'8 and 63kg/138lbs). Haven't done a proper test yet but i've managed to get 14km with 60% remaining whilst riding at near top speed. Max speed recorded was around 50km/h (since i'm light) but the board has the potential to go even faster (especially on downhill stretches). Tackles inclines easily, and you an also push the board easily with your foot if necessary.

Deck is sturdy, but it's recommended to apply the "dash-proof" rubber to the nose of the board in case it hits something. Ride comfort is adequate, definitely not as comfortable as a longboard, but way more comfortable than a standard skateboard. The kick tail also works well. Overall, i'm glad I chose this over the Boosted Board Mini X, definitely one of the best short boards available currently.
