US$249.99
ESC:
The ESC uses a customized Hobbywing ESC with sensor. As other Ownboard models it still has a smooth acceleration & braking but with a faster startup speed and a more powerful climbing ability. The high discharge current of 40A will keep you and your eBoard always strong and powerful, even when you are riding on mountainous roads.
Battery:
To ensure a sufficient range we choosed an appropriate battery (Samsung 30Q) with a discharge current of 45A (15A*3=45A). This new product is suitable for experienced esk8ters and more uphill roads.
Regenerative Braking:
The battery will be recharged when you brake, which saves up more energy for a longer ride.
2.4G Wireless Remote:
With 3 speed modes, ergonomic design, excellent soft touch material, no more connection losses，smoother acceleration & braking. An integrated LED display shows settings & battery level. We also included a vibration reminder for power & connection.
Max Speed:
Beginner Mode: 12.5mph (20 km/h)
Middle Mode: 18.75mph (30 km/h)
Proficient Mode: 26mph (42 km/h)
Range on full charging:
SAMSUNG 30Q 9.0Ah: 14-16 miles(22.5~25.5 km)
Up Hill:
30%
1 x Dual belt motor 5045-270Kv installed on the trucks
1 x Front wheels installed on the 8 inches trucks(83 or 90)
1 x Extra belt 3M 252mm/15mm width
1 x Extra Kegel Pulley
1 x All screws and nuts
1 x Dual belt motor 5045-270Kv installed on the trucks
1 x Hobbywing custom ESC installed in the enclosure
1 x Front wheels installed on the 8 inches trucks(83 or 90)
1 x Remote with USB charging cable
1 x Foam pads for enclosure
1 x Tools and battery adapter cable
1 x Extra belt 3M 252mm/15mm width
1 x Extra Kegel Pulley
1 x All screws and nuts
1 x Dual belt motor 5045-270Kv installed on the trucks
1 x Hobbywing custom ESC installed in the enclosure
1 x Samsung 30Q 3P10S 9.0Ah Battery installed in the enclosure
1 x Front wheels installed on the 8 inches trucks(83 or 90)
1 x Remote with USB charging cable
1 x Foam pads for enclosure
1 x certificated charger
1 x DC port charger adapter (US, AU, or EU plug up to your location)
1 x Tools and battery adapter cable

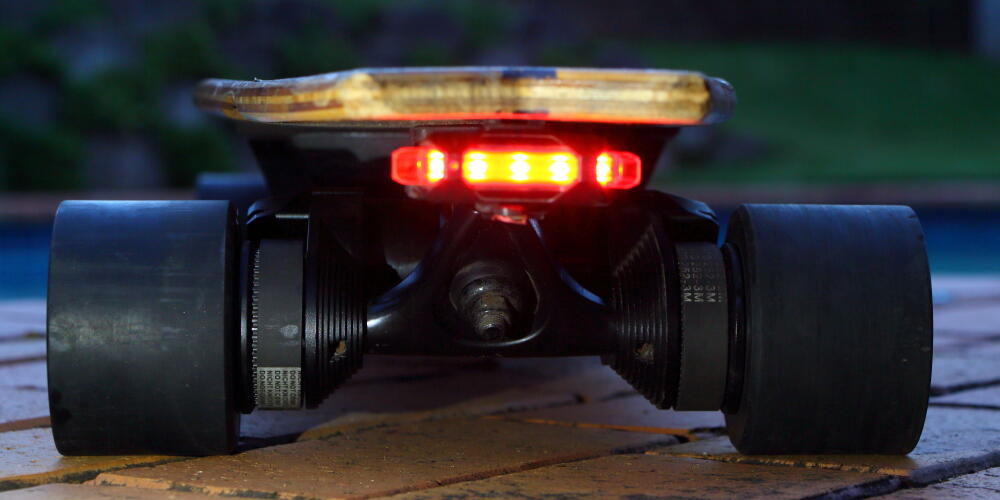

1 x Rear LED light and user manual
1 x Dash-proof rubber and black grip tape
1 x Extra belt 3M 252mm/15mm width
1 x Extra Kegel Pulley
1 x All screws and nuts
Rides very smooth and very reliable
Support was super helpful and the board works great!
Everything is great. Now I have the 7 inch inflatable tires being delivered to me. I hope the conversion goes well I saw your video on how to do the conversion and it helped out very much thank you.
I received a lot of extra stuff in the box like the charger that I really needed but didn't know that I'll get. The drivetrain is built really good and the springs for adjusting belt tension are very useful.
Motors are only 650w each but it is the most powerful drivetrain that I ever tried and speed control is very smooth and accurate... I went around 100 kilometers with it and had 0 issues.
The product is really nice. It came with a better looking remote than what was put in the picture but unfortunately my remote had a small issue.
This kit is perfect. It transformed my longboard into a fun, fast and reliable electric one. Next step is mounting All Terrain wheels. I think price - quality it's really good!
I go to college in an area with many hills. This makes going from class to class exhausting sometimes and sketchy others. Now with the belt drive, i can zoom as fast as possible up or down hills. Getting use to downhill breaking is strange especially when you lock up the rear wheels, but just be cautious and and you’ll get it down eventually.

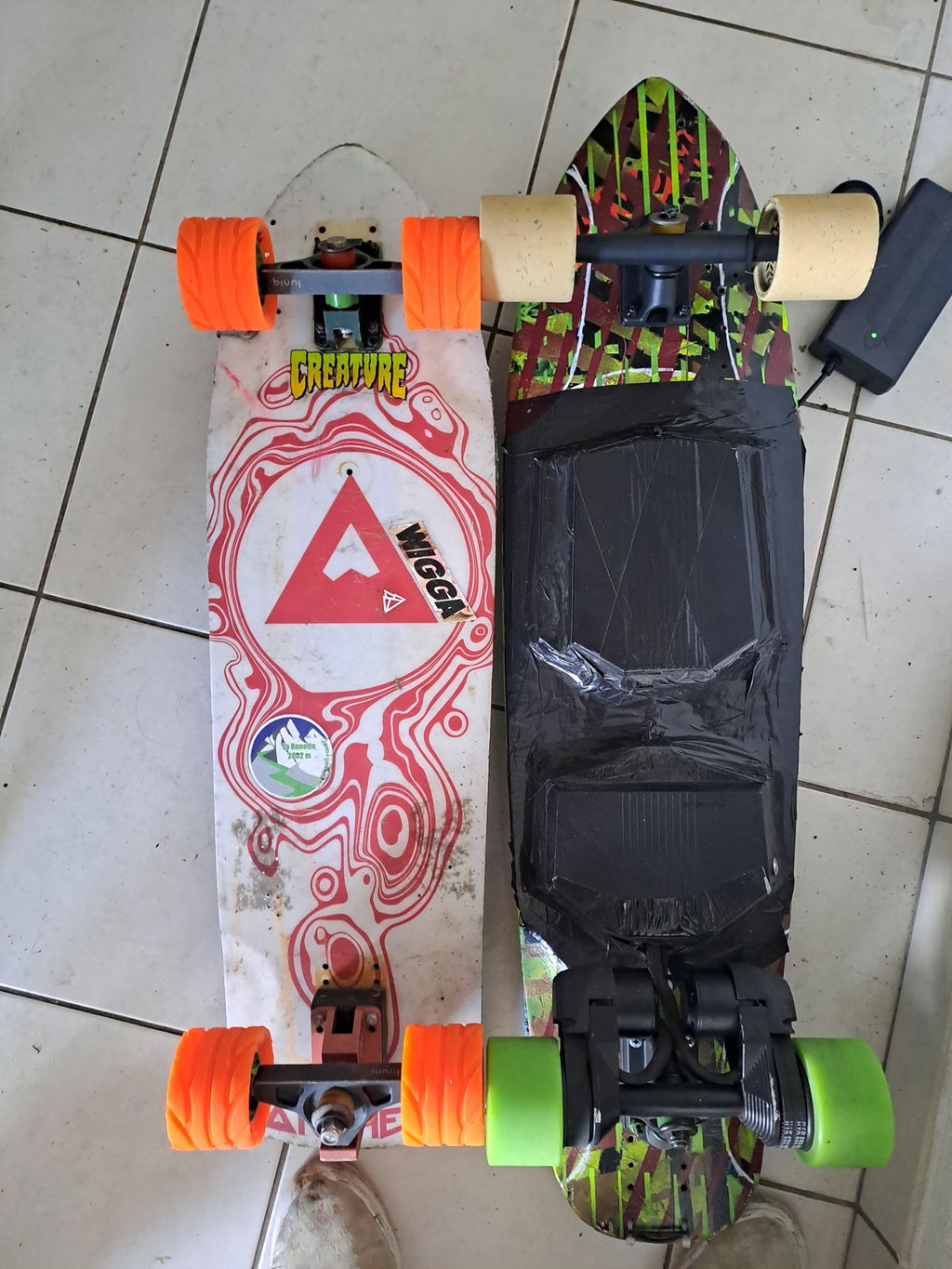

Took a couple weeks to receive it but well worth the wait. Instead of carving out a groove on the board I used self sticking, plastic conduit from Home Depot. Spray painted it black & cut it to fit. Just need to add black silicone to the ends to seal it up. Swapped front truck & rear base plate to Paris V3 for reliability/piece of mind. Also swapped bushings. Added clear Vicious Grip tape to an already sanded used Vanguard - Rides nice!
Pros:
A lot quieter & more torque than I was expecting...the motors are very responsive & quick!

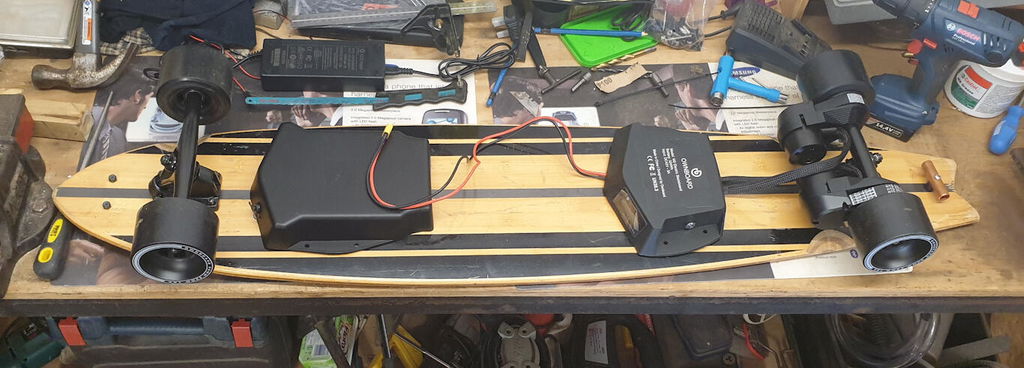

Fairly easy to assemble.

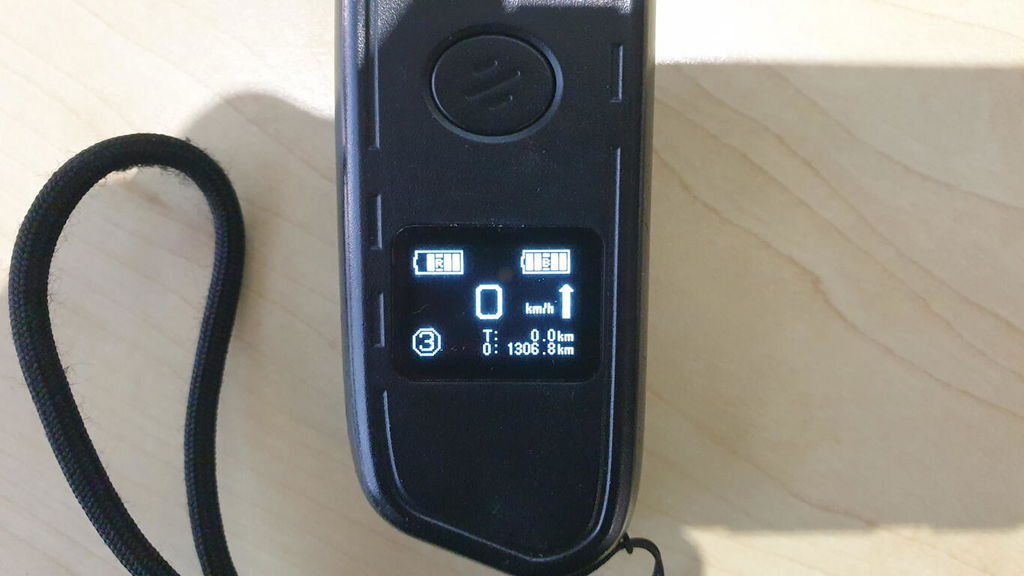

New OLED Remote
Comes w/lots of accessories & spare parts. Including O'tang Pulleys!
Cons:
I just wish the battery & esc enclosures had a slight curve/more flexible in order to make it easier to install on a concave deck. (Swapping batteries will be a pain)
Bearings on one side have a bit of a rattle to them.
Wish they offered Cloud Wheels as an option when buying the kit instead of 83 or 90mm wheels.
Wish the remote wheel had more grip to/on it, feels a bit slick.
Ownboard is making the best belt drive motors coming out of China, hands down!! I’ve been electric skateboarding for four years and I’m going to tell you that Ownboard as one of the first electric skateboard manufacturers in the game so they know what they’re doing, I highly recommend all of their products! You can’t go wrong here, their customer service is top Notch
I got the build your own board kit as a Christmas Preston for my son. We put it all together and it is awesome. Only problem was when we opened the box one of the power wires to one of the belt drive motors was cut. No a huge deal just spliced it together but it is a very small gauge wire. It would be nice to see a little better wire used there . But all in all great product thinking about getting another job be for myself.
