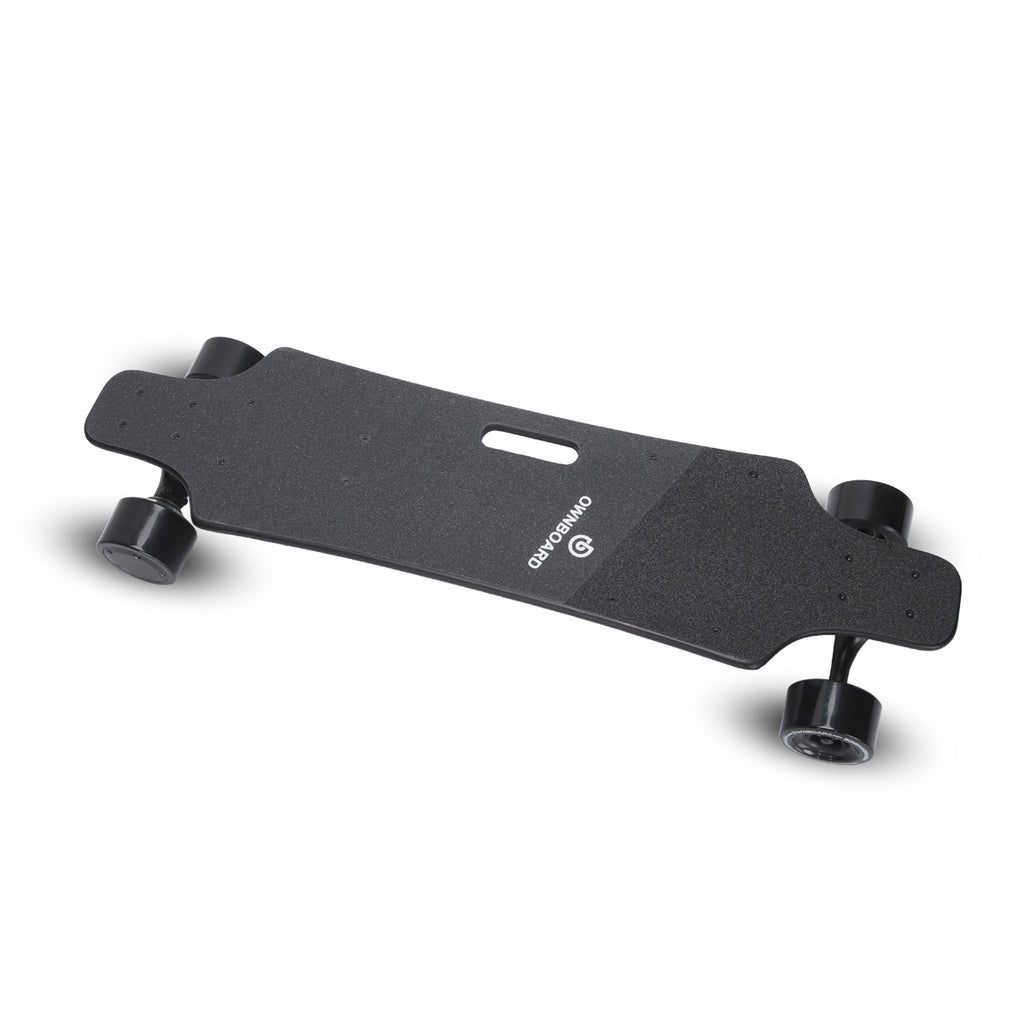

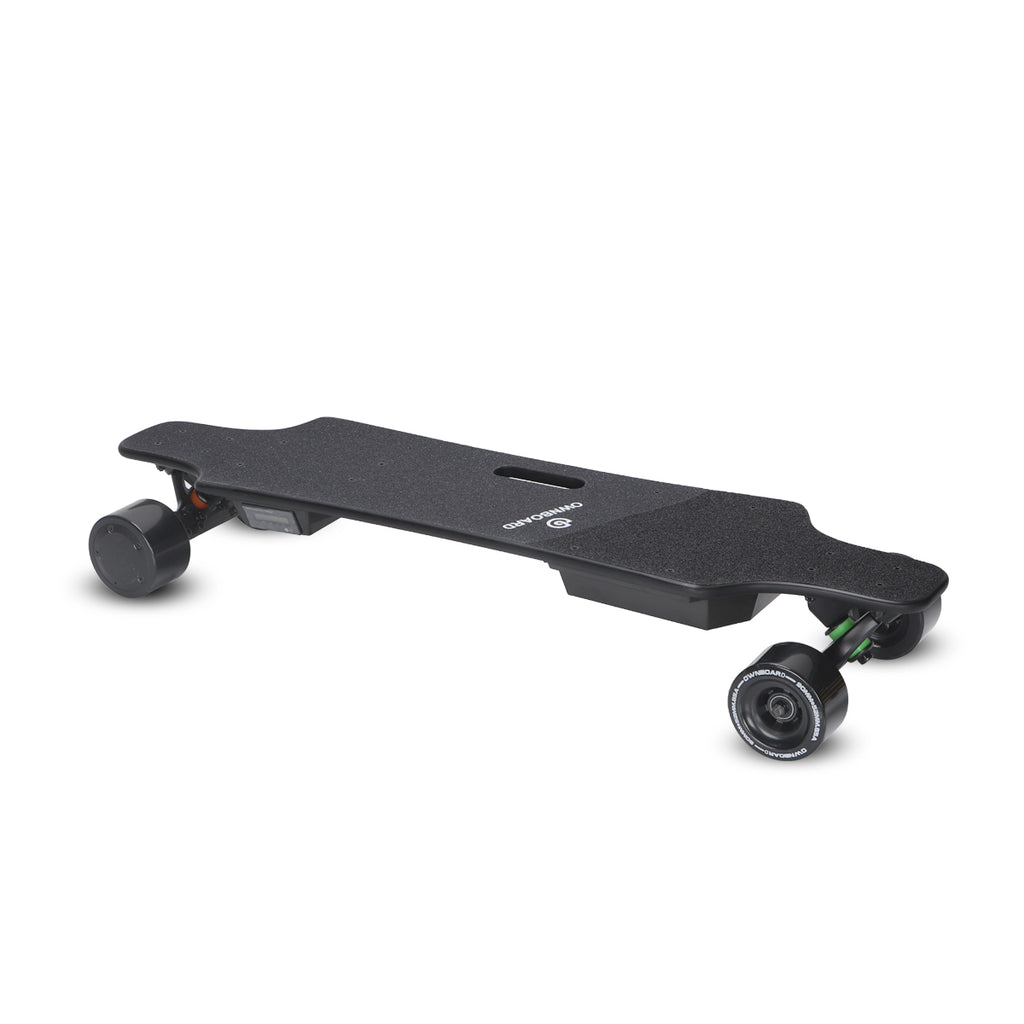

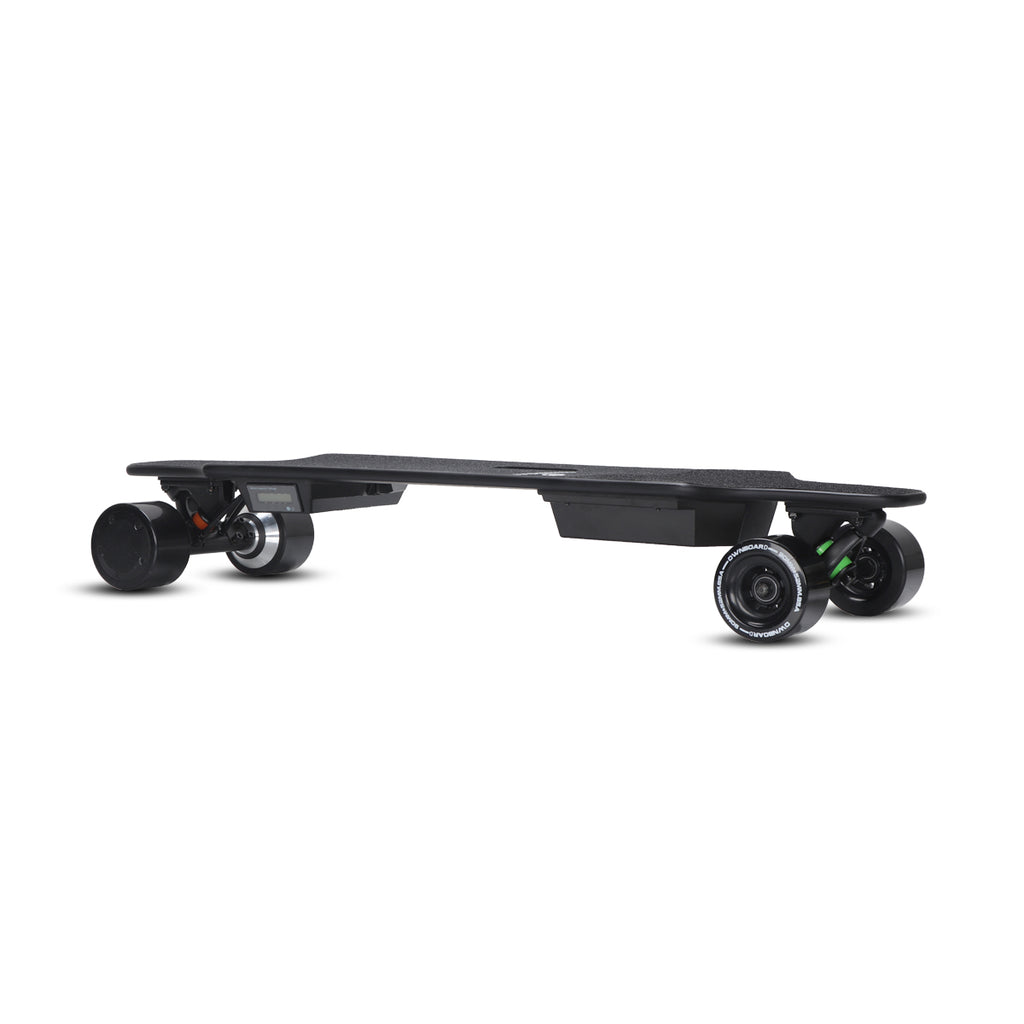

Ownboard C1S (35.4") - Electric Skateboard

Battery Capacity
Gripe type
Motor Type

PRODUCT FEATURES

FOC ESC:
The most stable ESC in an electric skateboard with water- & shockproof frame.


2.4G Wireless Remote:
3-speed modes available for different top speeds. Its ergonomic design with soft touch and power reminder ensure that the eBoard accelerates & brakes smoothly.


Battery:
The highly rated Samsung 30Q battery with a max. double discharge rate of 30A (compared to LG 6.4 Ah which only has 20A).  This reduces the  v oltage sag and allows the electric skateboard to keep going on high speeds even when the battery power is low. (Note: The ESC max discharge rate is 24A, Samsung 4.0 is 44A, Samsung 6.0 is 30A, SANYO 20700 is 24A). Expensive compared to SANYO, Samsung 30Q is the best choice.

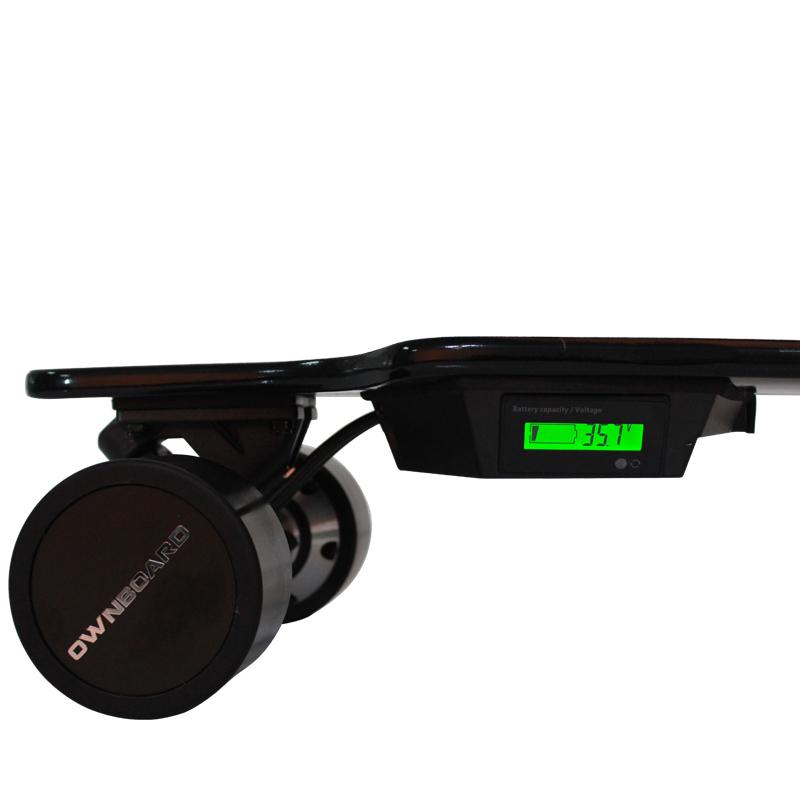

Power Display   :
You can easily check the battery level of your electric board on the lateral frame.


Ceramic Bearings:
Our professional durst- & waterproof ball bearings out of ceramic material ensure an unopposed sliding, even when you are driving on high speed for a longer time.


Exchangeable PU-Wheels:
Adds the option of interchanging different wheel-rubbers  & colors, as well as you can just replace them for newer ones.


Regenerative Braking:
The battery will be recharged while braking or riding downhill so that your electric board restores some energy and expand your range for a longer ride.

PRODUCT SPECIFCATION

Top Speed:
Beginner Mode: 12.5mph (20 km/h)
Middle Mode: 18.75mph (30 km/h)
Proficient Mode: 25mph (40 km/h)


Range on full charging:
SAMSUNG 4.0 : 9.5-12 miles (15~18.5 km)
SAMSUNG 6.0: 12.5-14 miles (20~22.5 km)
SANYO: 16-19 miles   (25.5~30.5 km)
(The advertised speed rating is based on a 70 kg rider in stable weather conditions at a        0 degree incline. We do not guarantee all users will reach the advertised speed as it    depends on rider weight, aerodynamics, incline, weather and many other factors.)


Max Load:
120 kg (265lbs)


Up Hill:
25%~30%


Weight:
7.6 kg (16.8lbs)

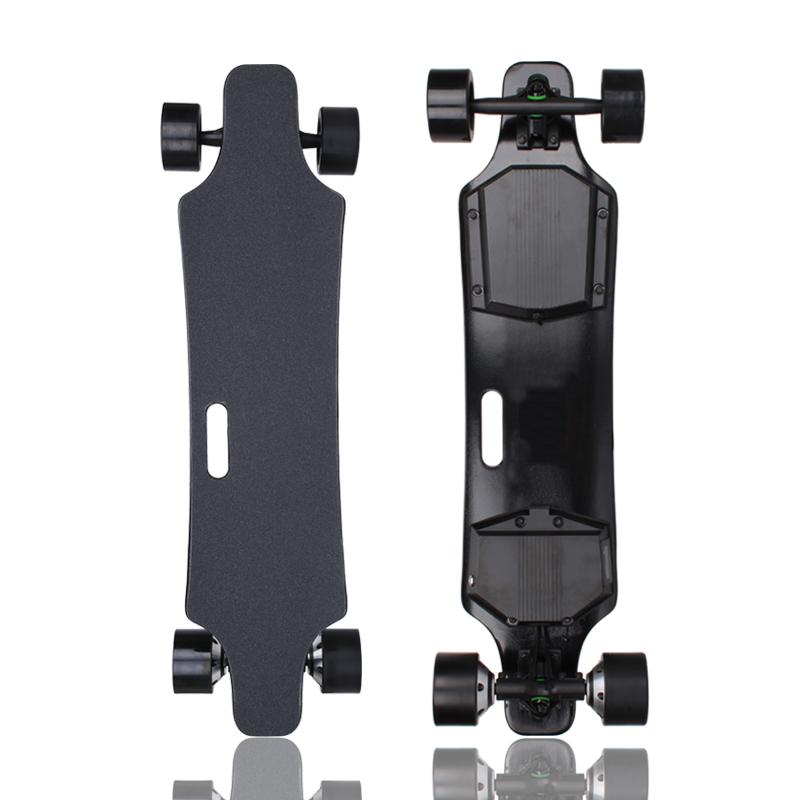

Deck:
8-Layers Maple, 35.4*9.05 inches, Concave designed


Motor:
250W Dual Brushless Hub-Motor, 90*54 mm, with 85A highly elastic PU-Wheels


Battery:
Safe & Powerful Li-ion Battery, Samsung 18650 & Sanyo 20700, 2P10S


Charger:
Input: 100~240V, 50/60Hz
Output: 42V, 2A (SANYO with 3A)
Charging time: 2-3 hours


What is in the Box
1 x completely assembled eBoard
1 x remote with USB charging cable
1 x extra foam for you to do deck swap
1 x certificated charger
1 x DC port charger adapter (US, AU, or EU plug up to your location)
1 x T-tool
1 x rear LED light
1 x user manual
1 dash-proof rubber
1 x extra black grip tape

Notes:  We provide you with the best product and service. If you have any problem, please let us know, and we will solve the problem ASAP. Thank you so much.

Multilingual keywords:        electric skateboard, deskorolka elektryczna, elektro skateboard, skateboard electrique, skateboard eléctrico, elektrisk skateboard, elektrisch skateboard, elektrisk skateboard, skateboard elettrico, 전기 스케이트 보드

Customer Reviews

Based on 34 reviews
94%
(32)
6%
(2)
0%
(0)
0%
(0)
0%
(0)
D
D.N.
I'm perfectly happy with my purchase!

You cannot get 10S2P Samsung 30Q batteries in a complete board from anyone else for this price. And it's fantastic quality to boot, with the HobbyWing ESC instead of the jerky LiYing ESC. Time will tell how well the PU wheels hold up, but at least I got the swappable ones.

H
H.S.
Great

Lovely

A
A.T.
Love it!

Don't know why most people don't talk about this board it's the best you can get for the price.

J
J.M.
Great

Can’t believe the power and speed it has! I just want to know if you can charge it even when it’s not fully dead like 40%. The RANGE is fantastic also

T
T.
So far everything i expected

Board a little bit stiff but ride's extra fun (my first and only board though so i can't compare). Acceleration and breaking pretty smooth, sanyo battery lives up to its promise - did 33,76 km (while in slow mode - 20km/h) with some pretty steep inclines (8% for 1,2 km) and got 33,76 km out of it while still having 11% left (me weighing 76 kg). Hope it doesn't quit after expiration of warranty, cause it's so damn much fun. Contrary to my assumption ordering the pu-sleeve-version doesn't mean you get extra sleeves but a motor of which you can switch the sleeves (sleeves need to be bought additional). Shipping to Germany took bout 3 weeks, preliminary contact was crisp and direct. Ordered second board for girlfriend ... plus extra sleeves.

All the best
Timo

D
D.H.

I hope this is really the W1S you are referring to.

B
B.P.
My ownboard

Great board. I love it

Thanks for your support ,have a nice day !
L
L.
Jaw droppin

okay. so I am in Europe, and it took me quite a while to deliver it but thats kool cuz Chinese New year was affecting it.

so.. it is really fast (at least in my opinion), it is so fast that my eyes get watery ( and i wear glasses). that's how fast it is.

the acceleration is super good, u can make it fast acceleration or smooth acceleration depending on how u use ur controller (btw, amazing. the Harvywing ESC is simply so precise and sensitive that u can really feel that u can control even a 1,2 km/s speed difference.

the deck is not the best but it is flexible enuf.

I stand with feet close to trucks, and get more vibration. but! it is flexible enuf. and personally, i dont want it to be more flexible so it is 'almost perfect'

u might feel that the board has huge wheels but when it comes to practical situations, those gigantic wheels save yo ass when they go over cracks like they r nothing.

the bushings tho, i have to say can b improved as even tightening or loosening has not major impact on what I wish it to do (e.g. so i tried tightening a lot or loosened it a lot but it just doesnt feel the same like other really good bushings. so ur turning (not carving) feels a little bit off than what u would expect)

But still. it is just sooooo goood quality. u can tell it is hard, solid and legit deal !

and seriously, u pay half or 1/3 of Bxxsted Board price right? but this is definately not half or 1/3 quality of it!! u really get a lot for the money u pay.

but! if u really want the best feeling and size is not bothering u, i suggest W1s, but! if size matters and u wanna go long "straight" road fast, I suggest u get this (instead of mini board, unless u really need kick tail and tight turns)

I wish there would b like a 32,33 inch board, with a kick tail.

BTW, i also wish they could let me check the battery option that I chose. without opening the battery case (cuz, it is almost impossible to open the case as it is kinda glued???) 🤔

M
M.A.
Amazing ___ amazing

Incredible electric board ..
Perfect for commute or fun Saturday
Unbelievable price and performance..
Perfect for San Francisco Bay Area!!!!
Ownboard ,, great job!!!
And , thank you !!!

Thanks for your support and have a nice day !
D
D.S.
C1S Impressions

First eboard I've owned but I've tried two others; a Meepo and Backfire Ranger. Acceleration is gradual and top speed on highest setting is plenty quick. I weigh ~60kg and can make it up the steepest hills around my area (Wellington, NZ). Sanyo battery life is insane, can make it into town from the suburbs and back a couple times on a single charge. Haven't gotten it below 20% before.

Overall great purchase, very pleased with it.

Sanyo battery is really powerful ,thanks for your support and have a nice day !
